Mindman MVSC-460-4E1 2 Way 5 Position Pneumatic Air Directional Control Single solenoid valve

Ningbo Nijia Electronics Technology Co.,Ltd
Contact Now
    Buy cheap Mindman MVSC-460-4E1 2 Way 5 Position Pneumatic Air Directional Control Single solenoid valve from wholesalers

    Buy cheap Mindman MVSC-460-4E1 2 Way 5 Position Pneumatic Air Directional Control Single solenoid valve from wholesalers
    • Buy cheap Mindman MVSC-460-4E1 2 Way 5 Position Pneumatic Air Directional Control Single solenoid valve from wholesalers
    • Buy cheap Mindman MVSC-460-4E1 2 Way 5 Position Pneumatic Air Directional Control Single solenoid valve from wholesalers
    • Buy cheap Mindman MVSC-460-4E1 2 Way 5 Position Pneumatic Air Directional Control Single solenoid valve from wholesalers
    • Buy cheap Mindman MVSC-460-4E1 2 Way 5 Position Pneumatic Air Directional Control Single solenoid valve from wholesalers
    • Buy cheap Mindman MVSC-460-4E1 2 Way 5 Position Pneumatic Air Directional Control Single solenoid valve from wholesalers
    • Buy cheap Mindman MVSC-460-4E1 2 Way 5 Position Pneumatic Air Directional Control Single solenoid valve from wholesalers

    Mindman MVSC-460-4E1 2 Way 5 Position Pneumatic Air Directional Control Single solenoid valve

    Ask Lasest Price
    Brand Name : AIRWOLF
    Model Number : MVSC-460-4E1
    Certification : CE
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C, Paypal, Credit card
    Supply Ability : 2000 pieces per 10 working days
    Delivery Time : 1-7 work days
    • Product Details
    • Company Profile

    Mindman MVSC-460-4E1 2 Way 5 Position Pneumatic Air Directional Control Single solenoid valve

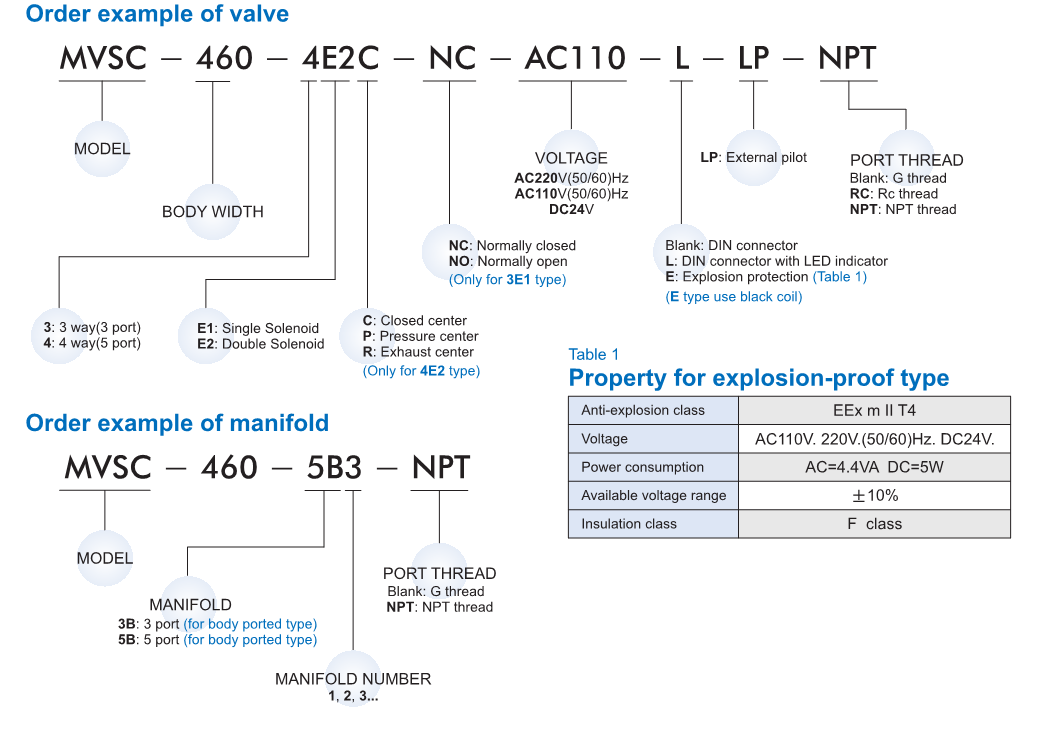

    MVSC-460-4E1 2 Way 5 Position Pneumatic Air Directional Control Single solenoid valve


    Model
    3E1
    3E2
    4E1
    4E2
    4E2C.P.R
    Bore No
    15A
    Port size
    G1/2
    No. of port
    3
    5
    No. of position
    2
    3
    Medium
    Air
    Operating pressure range
    0.2~0.8 MPa
    0.2~0.8 MPa
    Operating pressure (LP)
    0~0.8 MPa
    External pilot pressure (LP)
    0.2~0.8 MPa
    0.2~0.8 MPa
    Proof pressure
    1 MPa
    Effective orifice
    60 mm2
    50mm2
    30mm2
    Ambient temperature
    -5~+50℃ (No freezing)
    Voltage
    AC110V, 220V (50/60)Hz, DC24V
    Power consumption
    AC=4.8/4.4VA, 6/4.9VA DC=2W
    Available voltage range
    ±10%
    Insulation class
    F class
    Weight
    353g
    439g
    330g
    452g
    634g

    Electromagnetic valve is an industrial equipment controlled by electromagnetic force. It is an automatic basic component to control fluid. It belongs to actuator and is not limited to hydraulic and pneumatic. It is used in industrial control system to adjust the direction, flow rate, speed and other parameters of medium. Solenoid valves can cooperate with different circuits to achieve the desired control, and the control accuracy and flexibility can be guaranteed. There are many kinds of solenoid valves. Different solenoid valves play different roles in different positions of the control system. The most commonly used are one-way valves, safety valves, direction control valves, speed control valves and so on.




    Serves time
    0:00 - 23:59
    From Monday to Sunday


    Delivery
    1. If the products we have in store, we will send it out ASAP after payment.
    2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
    3. Also we can send by your delivery acount if you want.
    4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.


    Competitive Advantage
    Our product features Our Services Guarantee:
    1) Competitive price 1) Prompt respond (Reply with 24 hours)
    2) Good quality 2) Free Samples (Customer pay for the delivery cost)
    3) Professional Packaging 3) Registration support.
    4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
    5) None delay shipment 5) Loading inspection, and send loading photos before shipment.
