Brand Name : | AIRWOLF |
Model Number : | YT-310 |
Certification : | CE |
Price : | Negotiation |
Payment Terms : | Western Union, T/T, L/C, Paypal, Credit card |
Supply Ability : | 2000 pieces per 10 working days |
Delivery Time : | 1-7 work days |
YT-310N1 YT-310 Volume booster Pneumatic amplifier valve accelerator Korea YTC control valve

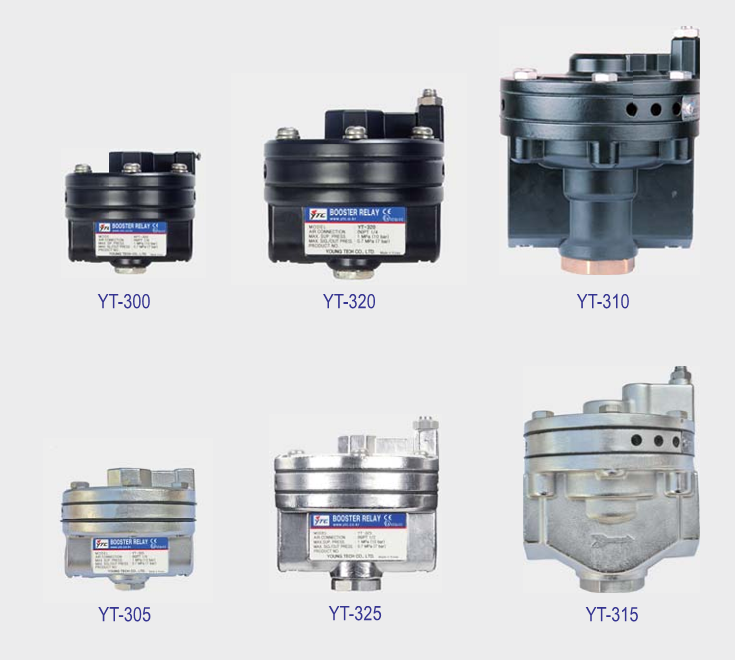

Volume booster YT-300,YT-310 and YT-320 boost the valve function′s reaction speed by providing large air flow rate to actuator.
- Improves speed of valve movement
- Improves stability with by-pass control
- Reacts to sudden change in supply pressure
- Fixed deadband due to the seat-to-seat type of supply and exhaust pressure
Item.Type | YT-300 YT-305 | YT-320 YT-325 | YT-310 YT-315 | |||
Max.Supply Pressure | 1MPa(10bar) | |||||
Max.Output Pressure | 0.7MPa(7bar) | |||||
Singnal/Output Pressure Ratio | 1:1 | |||||
Flow Capacity(Cv) | exhaust | 1.32 | 2.08 | 5.24 | ||
output | 1.19 | 2.72 | 4.91 | |||
Supply/Output Connection | PT(NPT)1/4 | NPT 1/2 | NPT 3/4 | |||
Singnal Connection | PT(NPT)1/4 | NPT 1/4 | ||||
Linearity | ±1% F.S | |||||
Ambient Temp | -20℃~70℃ (-4~158°F) (Standard type) | |||||
Material | YT-300;YT-320;YT-310 | Aluminum Diecasting | ||||
YT-305;YT-325;YT-315 | Stainless Steel316 | |||||
Weight | YT-300 | YT-320 | YT-310 | 0.5kg(1.1Ib) | 0.76kg(1.7Ib) | 2.3kg(5.1Ib) |
YT-305 | YT-325 | YT-315 | 1.3kg(2.9Ib) | 1.9kg(4.2Ib) | 5kg(11Ib) |
