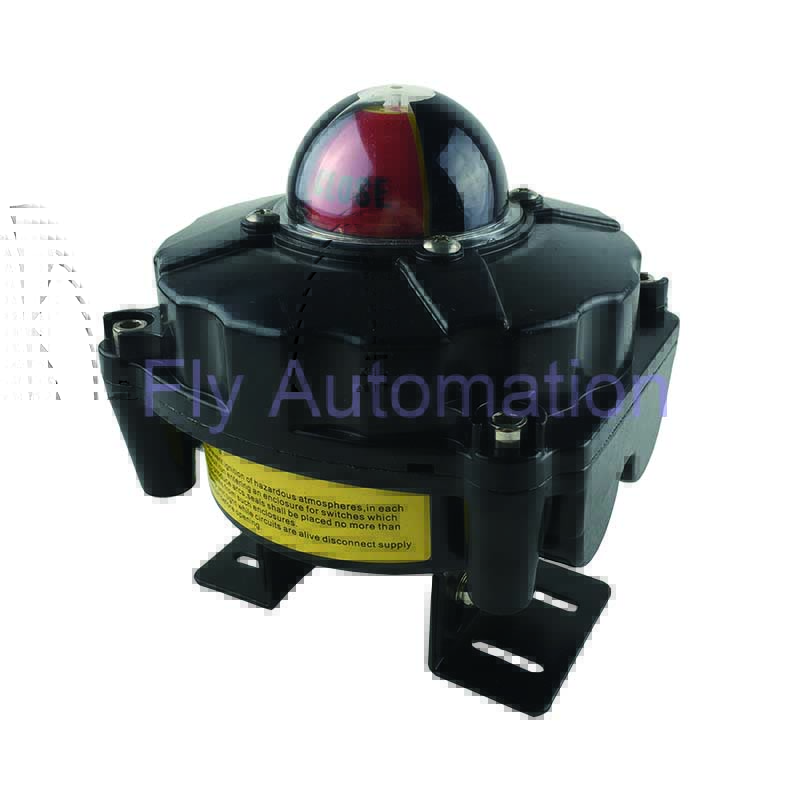

    ITS300 Explosion Proof position monitoring Pneumatic valve type feedback device Switch feedback

    Ask Lasest Price
    Brand Name : AIRWOLF
    Model Number : ITS300
    Certification : CE
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C, Paypal, Credit card
    Supply Ability : 2000 pieces per 10 working days
    Delivery Time : 1-7 work days
    • Product Details
    • Company Profile

    ITS300 Explosion Proof position monitoring Pneumatic valve type feedback device Switch feedback

    ITS300 Explosion Proof position monitoring Pneumatic valve type feedback device Switch feedback


    Description
    ITS 300 series are designed suitable for valve and actuatorsin hazardous area application, having compact but robustconstruction
    conforms to IEC60079-0:2007,
    IEC60079-1 :2007, EN60079-0:2006 and EN60079- 1:2007,also suitable in Zone 1 and 2, and ingress protection IP67,Standard aluminum
    housing provides reliable explosion proofperformance.

    Feature
    Rigid and compact design constructed from aluminumalloy die-casting capable of operating even in arduous conditions.


    SpecificationStandardOption
    EnclosureExplosion proof Ex d IIC T6 Gb, IP67, O-ring sealedIP 68
    Outside coatingEpoxy-Polyester outside against corrosionNylon Coating
    Special color Coating
    Ambient temperature-20℃ ~+80℃
    (Explosion proof type: -20℃~+60℃)
    Higher(~100℃)
    and lower (-40℃) temperature
    Cable entries2 - PF3/4, other standard threadsNPT3/4, M20x1.5, M25x1.5)
    Terminal block8 nos of terminal strips
    (6 for switches, 2 for solenoid valve power)
    Position indicatorDome type 0°~90°Others(3 way L-port, T-port)
    Mounting bracketStainless steel acc. to VDI/VDE3845
    NAMUR, SS1, SS2 as standard
    SS3, MT1 as option
    Switches (sensors)2-SPDT mechanical switch(Form C)SS3, MT1 as option

    Serves time
    0:00 - 23:59
    From Monday to Sunday


    After-sale Service
    We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.


    Warranty
    All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
    If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
