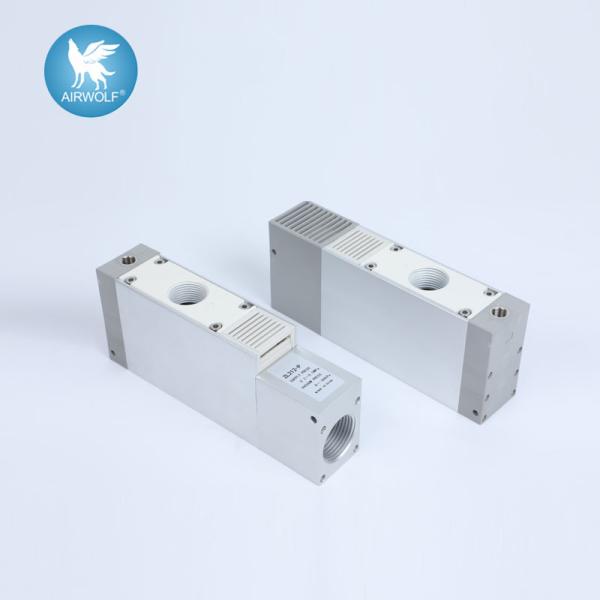

SMC Multistage Ejector ZL112/212 Series large flow rate, 3 stage
diffuser construction Multistage vacuum generator
Fields: Semiconductors, electronics, automotive assembly, food processing
and medical equipment, all types of manufacturing assembly
equipment
Machinery: Robotic hand/material handling, automotive assembling machines,
automatic transfer equipment, pick and place, printing machinery
Applications: Vacuum adsorption transfer, vacuum adsorption retention, vacuum
generated air flow
Energy-saving, large flow rate, 3 stage diffuser construction
Suction flow rate
increased 250% and
air consumption reduced
20% with 3 stage diffuser
construction
(Versus ø1.3, one stage model)

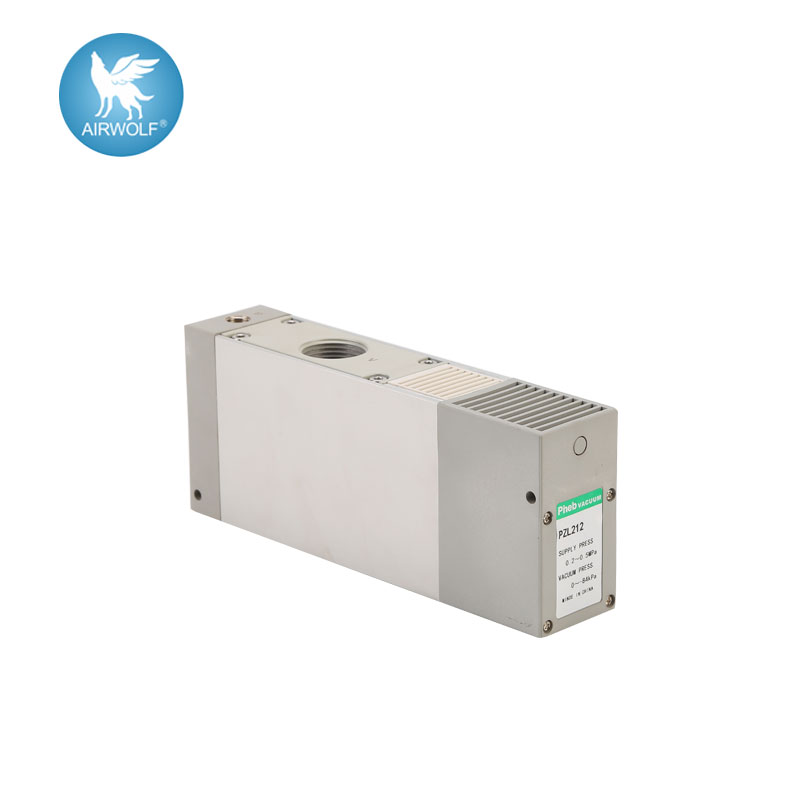

ZL212 Series
Diffusers stacked and integrated
Compact size and large flow rate
(Twice the flow rate of the ZL112)
Ejector Specifications
| Model | ZL112 |
| Nozzle diameter | 1.2 mm |
| Maximum suction flow rate | 100 L/min (ANR) |
| Air consumption | 63 L/min (ANR) |
| Maximum vacuum pressure | –84 kPa |
| Maximum operating pressure | 0.7 MPa |
| Supply pressure range | 0.2 to 0.5 MPa |
| Standard supply pressure | 0.4 MPa |
| Operating temperature range | 5 to 50°C |
| Model | ZL212 |
| Nozzle diameter | ø1.2 mm x 2 |
| Maximum suction flow rate | 200 L/min (ANR) |
| Air consumption | 126L/min (ANR) |
| Maximum vacuum pressure | –84 kPa |
| Maximum operating pressure | 0.7 MPa |
| Supply pressure range | 0.2 to 0.5 MPa |
| Standard supply pressure | 0.4 MPa |
| Operating temperature range | 5 to 50°C |
