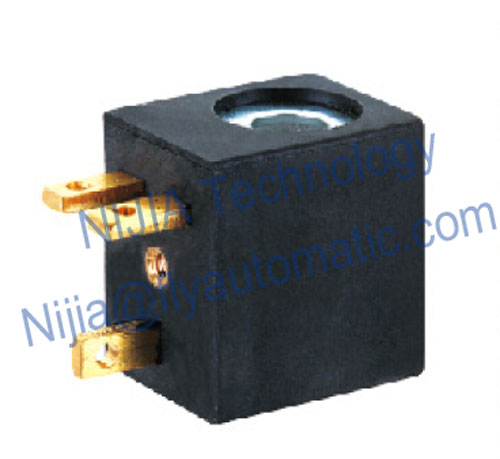

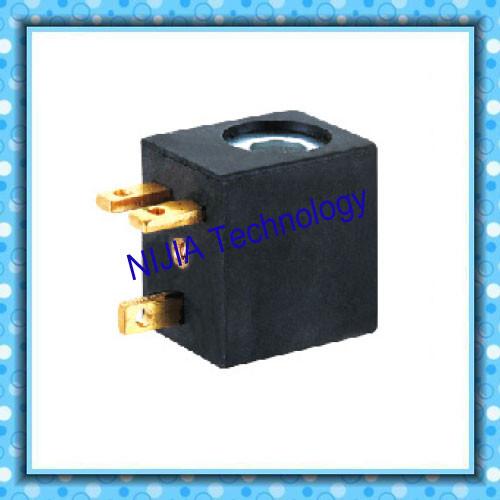

Terminal wiring type 4V210 EVI7/9 Amisco Pneumatic Solenoid Coil AC110V AC230V DC12V DC24V

The system is designed for 4V210 series Pnuematic sonlenoid valves.

All solenoids of this system have the guide tube with a diameterof 9 mm and the plunger with a diameter of 8 mm.
This type EVI7/9 could be widely used to Airtac 4V110 4V210 4V410 and 4V440 series solenoid valves.The EVI7 S9 system by AMISCO includes a wide range of solenoids, coils and operators, designed for pneumatic valves.

Specifications:

• Built-in magnetic yoke made by low carbon iron
• Encapsulation with high quality specially designed glass filled nylon ( thermoset material on demand for 22 mm coil ).

• Heat resistant bobbin moulded with 30% glass filled thermoplastic polyester material
• Class H wire 200°C according to IEC 60317-13

The use of other materials is possible upon special agreements. All coils are rated to class F and to IP 65 ( with connector ).
The coil is designed and constructed in accordance to EN 60204.1 and VDE 0580 and it is suitable for industrial ambient conditions. For use in special ambients with high humidity, we suggest the sealed or thermoset version

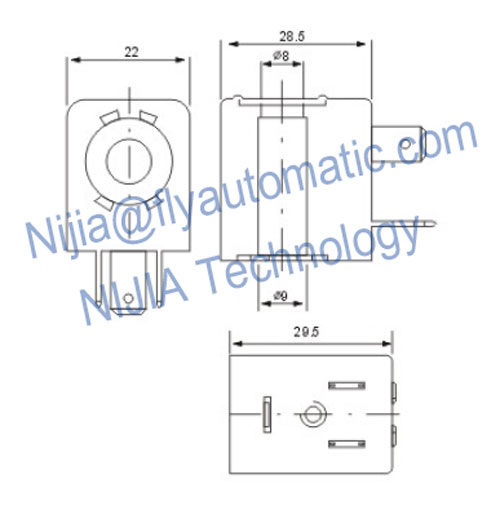

Drawings:

Operator:

Plunger and core are made by a magnetic stainless steel specially designed for solenoid applications.
The guide tube is made with brass ( stainless steel is possible upon special agreement ).
The plunger is normally equipped with NBR rubber seals.
Other sealing materials like FKM are available upon demand.
The armature assembly is designed for more than 50x106 cycles.

Competitive Advantage:

1. Enough stock

2. Standard export package

3. High and stable quality

4. Quick delivery time

5. Best service from the whole company.

    Ningbo Nijia Electronics Technology Co.,Ltd.founded in 1989,located in Xikou , Fenghua city , which a national 5A-class tourist spot , is a high and new technology company specializing in researching , developing , designing and manufacturing solenoid valve coils.

    Nijia Technology enjoys perfect self-dvelopment and production capacities . With the company philosophy of high-tech , new products and new technologies , the Company has provided customers with high-quality products for many years . Products have been sold to worldwide and regions like the United States , Italy , Poland , the Middle East , South Korea , Russia , India etc.

    With strong technology force , advanced equipment , superb techniques and  advanced detection instruments , the company continues to develop and produce a series of products . The company has passed the ISO9001 Certification , EC CE certification and China Credit Enterprise System Certification.

    CNG/LPG dual-fuel vehicles valve coils , electromagnet for hydraulic valve , pulse valve coils , textile high-frequency coils and various types of special electromagnetic valves produced by the company won great acclaim from the customers due to reliable quality . In prodution , the Company makes high quality as the major source of its development . Equipped with a team of experienced research and development personnel , the company dedicates itself to applying the world 's leading technologies to product development , thus laying a firm foundtion for improving the quality of products , striving to provide the best products for the customers.

    Excellent quality Worthy of trust , Nijia Technology will create a brilliant future with customers!
