Hydraulic solenoid valve coil AC220V solenoid coil inset diameter
23mm high 52mm

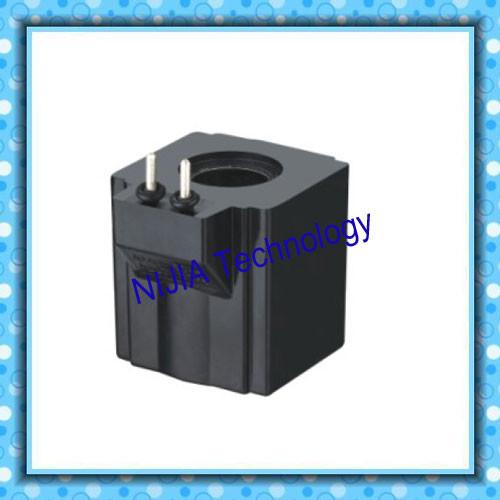

The Hydraulic Solenoid coil NIJIA406 inset diameter 23mm high 52mm
Coil suitable for hydraulic applications . It can be supplied with
different power consumptions according to specific requirements.
The NJT406 coil system includes a wide range of electrical coils
suitable for cartridge valves for mobile hydraulics .
Specifications:
| Brand name | NIJIA |
| Model number | NJT406 |
| Voltage | AC220V |
| Working Medium | Air oil |
| Operating Method | Pilot action |
| Normal Power | 65VA |
| Color | Black |
| Working Temperature | -40~50°C
|
• Built-in magnetic yoke made by low carbon iron
• Encapsulation with high quality specially designed glass filled
nylon ( thermoset material on demand for 26 mm coil ).
• Encapsulation with high quality specially designed glass filled
nylon ( thermoset material on demand for 26 mm coil ).
• Heat resistant bobbin moulded with 30% glass filled thermoplastic
polyester material
The use of other materials is possible upon special agreements .
All coils are rated to class F and to IP 65 ( with connector ).
The coil is designed and constructed in accordance to EN 60204.1
and VDE 0580 and it is suitable for industrial ambient conditions .
For use in special ambients with high humidity , we suggest the
sealed or thermoset version.
Drawings:
Application:
SV series Solenoid Valve is a kind of normally closed, two-channel
trait ,acted as a pilot valve, it usually is applied in the liquid
refrigerant or exhausting air and water or compressing air, with
the features as below:
1. Nut system with O ring ensures watertight performance and
strengthens the watertight performance of the coil.
2. The elaborately designed coil winding conforms to
CE161-lstandard and able to remain functioning under extreme
conditions.
3. The coil winding can be fitted with plug-in connector, which is
configured with three wires and can be connected very easily.
4. Electromagnetic coil employ moisture-proof resin windings, which
possesses water-proof and shock resistant characteristics.
5. There is no need to shut systematic pipe line when replacing the
electromagnetic coils.
6. The valve can evaporate normally, be opening or closing, under
the condition that there is no pressure differential of the
refrigerant media.
7. Working Temp.:-40℃ ~ +110℃；
8. 24V, 110V, 220V and 380v electromagnetic coil are available and
please inform us of that when placing order
Specifications:
Type | Connection size | Port φ(mm) | M.O.P.D(bar) | Max.Working
Pressure (bar) | KV Factor(bar) | Nominal Capacity (KW) |
Solder | R134a | R22 | R407C | R404A |
Φ[in.] | Φ[mm] |
SV1028/2 | 1/4” | - | 2.2 | 21 | 32 | 0.15 | 2.53 | 2.70 | 2.81 | 1.79 |
SV1028/2E | 1/4” | - | 3.0 | 0.23 | 3.88 | 4.14 | 4.31 | 2.74 |
SV1028/3 | 3/8” | - |
SV1028/M10 |
| 10 |
SV1068/3 | 3/8” |
| 7.0 | 0.8 | 6.8 | 9.4 | 9.3 | 8.0 |
SV1068/M10 | - |
|
SV1068/M12 | - | 12 |
SV1068/4 | 1/2” | - |
SV1078/M12 | - | 12 | 12.5 | 2.2 | 18.7 | 25.7 | 25.6 | 22.0 |
SV1078/4 | 1/2” | - |
SV1078/5 | 5/8” | 16 | 2.61 | 22.2 | 30.5 | 30.3 | 26.1 |
SV1078/6 | 3/4 | - |
SV1079/7 | 7/8” | 22 |
SV1058/5 | 5/8” | 16 | 16.5 | 3.8 | 32.3 | 44.5 | 44.2 | 38.0 |
SV1058/6 | 3/4” | - | 4.8 | 40.8 | 56.2 | 55.8 | 48.0 |
SV1058/7 | 7/8” | 22 | 5.7 | 48.5 | 66.7 | 66.2 | 57.0 |
SV1059/9 | 1.1/8” | - |
SV1098/5 | 5/8” | 16 | 3.8 | 32.3 | 44.5 | 44.2 | 38.0 |
SV1098/6 | 3/4” | - | 4.8 | 40.8 | 56.2 | 55.8 | 48.0 |
SV1098/7 | 7/8” | 22 | 5.7 | 48.5 | 66.7 | 66.2 | 57.0 |
SV1099/9 | 1.1/8” | - |
SV1078/9 | 1.1/8” | - | 25.5 | 10 | 85.0 | 117.0 | 116.2 | 100.0 |
SV1079/11 | 1.3/8” | 35 |
SV1098/9 | 1.1/8” | - | 25.0 | 10 | 85.0 | 117.0 | 116.2 | 100.0 |
SV1099/11 | 1.3/8” | 35 |
SV1078/11 | 1.3/8” | 35 | 27.0 | 16 | 136.0 | 187.2 | 185.9 | 160.0 |
SV1079/13 | 1.5/8” | - |
SV1079/M42 | - | 42 |
Dimension:
Type | Dimension(mm) |
H1 | H2 | H3 | L1 | L2 | Q |
SV1028/2 | 75 | 62.5 | 34 | 125 | 50 | - |
SV1028/2E | 125 |
SV1028/3 | 125 |
SV1028/M10 | 125 |
SV1068/3 | 82 | 69.5 | 40 | 111 | - |
SV1068/M10 | 111 |
SV1068/4 | 127 |
SV1068/M12 | 127 |
SV1078/M12 | 91 | 75 | 47 | 127 | 45 |
SV1078/4 | 127 |
SV1078/5 | 175 |
SV1078/6 | 175 |
SV1079/7 | 190 |
SV1058/5 | 121 | 93 | 65 | 175 | 57 |
SV1058/6 | 175 |
SV1058/7 | 180 |
SV1059/9 | 216 |
SV1098/5 | 106 | 78 | 50 | 175 |
SV1098/6 | 175 |
SV1098/7 | 180 |
SV1099/9 | 216 |
SV1078/9 | 115 | 96 | 72 | 250 | 80 |
SV1079/11 | 292 |
SV1098/9 | 157 | 127 | 99 | 235 | 68 |
SV1099/11 | 277 |
SV1078/11 | 172 | 138 | 110 | 278 | 68 |
SV1079/13 |
SV1079/M42 |
