DC 20W CNG LPG Automotive Valve Φ 14.1 × 42.9mm insert type for high pressure reducer

The Automotive valve coil NJT206 suitable for high pressure reducer.

It can be supplied with different power consumptions , according to specific requirements.

Other special voltage and power could be customized.

The NJT206 coil system includes a wide range of electrical coils suitable for cartridge valves for LPG CNGand

LNG system.

The NJT206 coils are designed thermoplastic composite material or flame retardant temperature resistant resin.

Specifications:

1. Normal voltage :24VDC 12VDC

2. Normal power : 17W 18W 20W (other voltage and power can be customized)

3. Color : Bule,(can be customized)

4. Inner Hole : Φ 14.1 × 42.9mm

5. Protect class:IP65

6. Material : Polyamide 66

7. Insulation class : H

8. Connection Type : 6.3 * 0.8mm

9. Used to Lovato pressure reducer
10. Heavy duty long service life

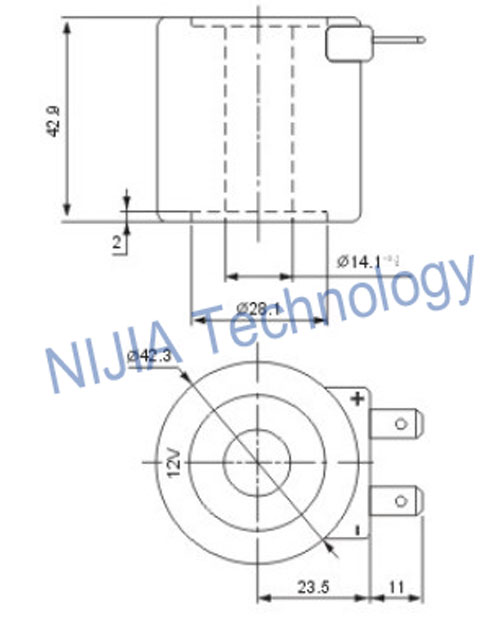

Drawings:

Applications

High temperature resistant, excellent moistureproof property,widely used in car dual-fuel LPG/CNG modified

system, pressure reducer,motorcycle device etc.

Coil other parameter:

Competitive Advantage:

1. Best service from the whole company.

2. Professional factory

3. High and stable quality

4. Quick delivery time

5. Good package,Standard export packing

    Ningbo Nijia Electronics Technology Co.,Ltd.founded in 1989,located in Xikou , Fenghua city , which a national 5A-class tourist spot , is a high and new technology company specializing in researching , developing , designing and manufacturing solenoid valve coils.

    Nijia Technology enjoys perfect self-dvelopment and production capacities . With the company philosophy of high-tech , new products and new technologies , the Company has provided customers with high-quality products for many years . Products have been sold to worldwide and regions like the United States , Italy , Poland , the Middle East , South Korea , Russia , India etc.

    With strong technology force , advanced equipment , superb techniques and  advanced detection instruments , the company continues to develop and produce a series of products . The company has passed the ISO9001 Certification , EC CE certification and China Credit Enterprise System Certification.

    CNG/LPG dual-fuel vehicles valve coils , electromagnet for hydraulic valve , pulse valve coils , textile high-frequency coils and various types of special electromagnetic valves produced by the company won great acclaim from the customers due to reliable quality . In prodution , the Company makes high quality as the major source of its development . Equipped with a team of experienced research and development personnel , the company dedicates itself to applying the world 's leading technologies to product development , thus laying a firm foundtion for improving the quality of products , striving to provide the best products for the customers.

    Excellent quality Worthy of trust , Nijia Technology will create a brilliant future with customers!
