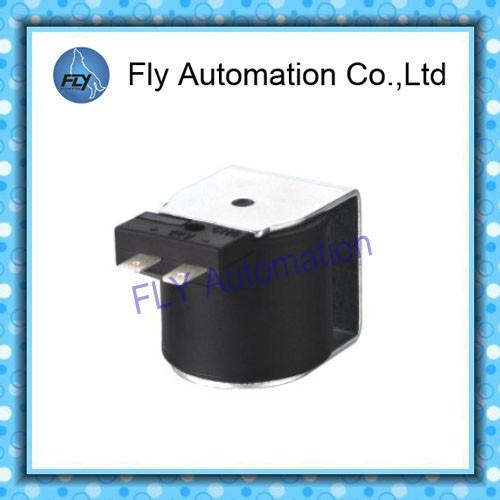

Tomasetto single point pressure reducer automotive valve coil Φ 16 × 37.6mm DC12V 16.5W 19W

Tomasetto single point pressure reducer automotive valve coil NJT204 suitable for automotive valve system.

Φ 16 × 37.6mm DC12V 16.5W 19W,Other special voltage and power could be customized

It can be supplied with different power consumptions according to specific requirements.

The NJT204 coils are designed thermoplastic composite material or flame retardant temperature resistant resin.

The NJT204 coil system includes a wide range of electrical coils suitable for cartridge valves for LPG LNG and CNG system.

Specifications:

1. Model number:NJT204

2. Normal voltage:24VDC 12VDC

3. Normal power: 17W 18W 20W (other voltage and power can be customized)

4. Color : Black , ( can be customized )

5. Inner Hole : Φ 16 × 37.6mm

6. Protect class : IP66

7. Insulation class : H

8. Connection Type : 16 × 0.8mm

9. Used to automotive valves system
10. Heavy duty long service life

Drawings:

Competitive Advantage:

High temperature resistant, excellent moistureproof property,widely used in car dual-fuel LPG/CNG modified

system, pressure reducer,motorcycle device etc.

Coil other parameter:

Attention:
