Black IP65 H Class Auto Solenoid Valve Coil Landi Reducer Coil Φ 16.3 × 41.7mm

    Buy cheap Black IP65 H Class Auto Solenoid Valve Coil Landi Reducer Coil Φ 16.3 × 41.7mm from wholesalers

    Buy cheap Black IP65 H Class Auto Solenoid Valve Coil Landi Reducer Coil Φ 16.3 × 41.7mm from wholesalers
    • Buy cheap Black IP65 H Class Auto Solenoid Valve Coil Landi Reducer Coil Φ 16.3 × 41.7mm from wholesalers
    • Buy cheap Black IP65 H Class Auto Solenoid Valve Coil Landi Reducer Coil Φ 16.3 × 41.7mm from wholesalers
    • Buy cheap Black IP65 H Class Auto Solenoid Valve Coil Landi Reducer Coil Φ 16.3 × 41.7mm from wholesalers

    Black IP65 H Class Auto Solenoid Valve Coil Landi Reducer Coil Φ 16.3 × 41.7mm

    Ask Lasest Price
    Brand Name : NIJIA
    Model Number : NJT215
    Certification : ISO9001CE
    Price : negotiation
    Payment Terms : T/T,western Union,Paypal,Credit card
    Supply Ability : 100,000pcs per month
    Delivery Time : 1-10 working days after received payment
    • Product Details
    • Company Profile

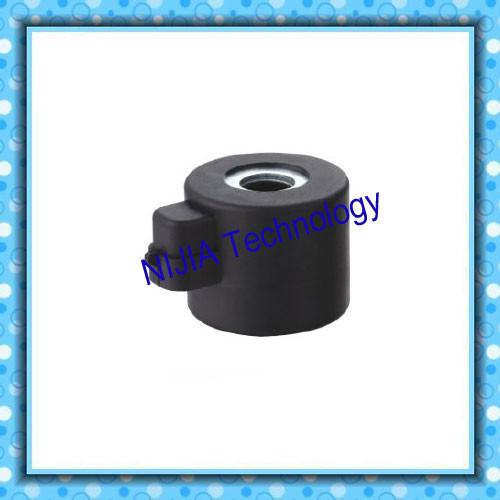

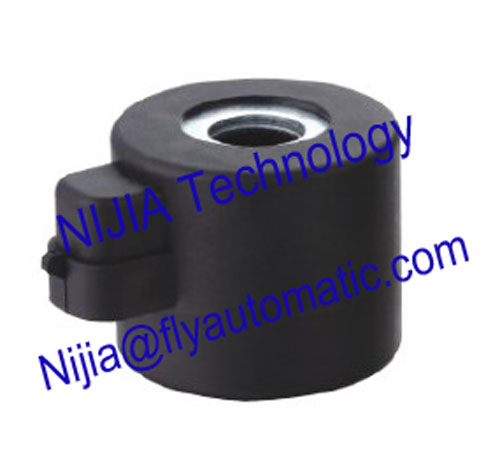

    Black IP65 H Class Auto Solenoid Valve Coil Landi Reducer Coil Φ 16.3 × 41.7mm


    Φ 16.3 × 41.7mm Landi reducer Coil Auto Solenoid Valve Coil black DC12V 22W IP65

    The NJT215 coil system includes a wide range of electrical coils suitable for cartridge valves for LPG LNG and CNG system.

    The NJT215 coils are designed thermoplastic composite material or flame retardant temperature resistant

    resin,widely used in LPG/CNG Injection rail Coil etc.


    BRC type Relieve Valve Coil NJT215 suitable for automotive valve system.

    Φ 16.3 × 41.7mm DC12V 20W ,Other special voltage and power could be customized


    It can be supplied with different power consumptions according to specific requirements.


    Specifications:


    itemLandi reducer auto coil
    product codeNJT215
    specificationDEUTCH
    applied of voltageDC12V
    resistant breakdown voltageDC 20W
    voltage range±10%
    insulation classH grade
    protection gradeIP65
    ED100%
    temperature resistant rangeH
    coated materialsThermoplastic composite material or flame retardant temperature resistant resin
    advantageshigh temperature resistant, excellent moistureproof property
    applicationsLPG/CNG Injection rail Coil

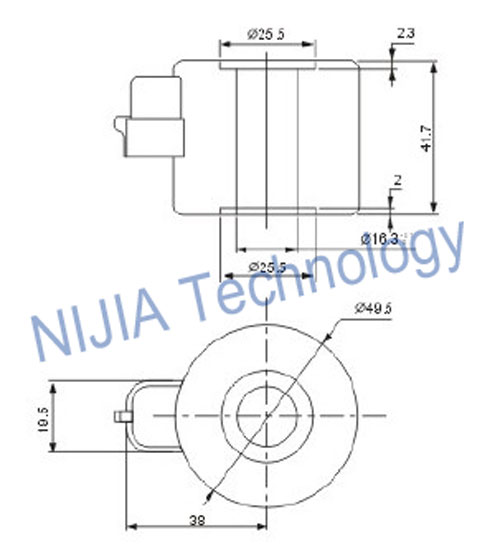

    Drawings:


    Competitive Advantage:


    High temperature resistant, excellent moistureproof property,widely used in car dual-fuel LPG/CNG modified

    system, pressure reducer,motorcycle device etc.


    Coil other parameter:


    Insulation temperature class

    A

    E

    B

    F

    H

    Maximum allowable temperature/degree

    105

    120

    130

    155

    180

    Permissible temperature rise(K)

    60

    75

    80

    105

    125

    Performance reference temperature/degree

    80

    95

    100

    120

    145

    Thermal margin

    5

    5

    10

    10

    15

    Maximum ambient temperature/degree

    40

    40

    40

    40

    40


    Competitive Advantage:


    1. Professional factory and excellent team.

    2. Best service from the whole company.

    3. High and stable quality.

    4. Adequate inventory and quick delivery time.

    5. Good package in order to void the problems in transportation.
