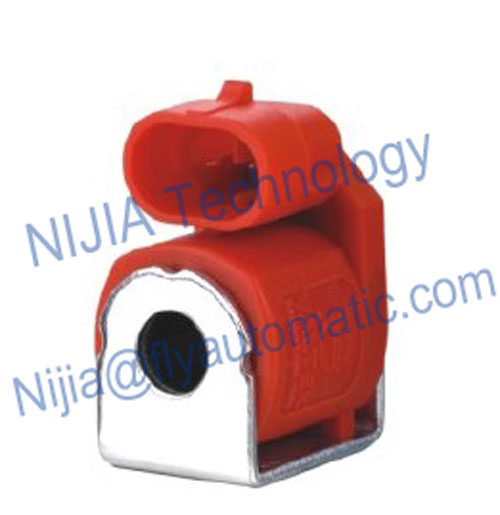

Valtek type injection rail automotive valve coil Φ 9.3 × 25mm DC12V
48W 1Ω 2Ω 5Ω 6Ω
The NJT209 coils are designed thermoplastic composite material or
flame retardant temperature resistant resin.
The NJT209 coil system includes a wide range of electrical coils
suitable for cartridge valves for LPG LNG and CNG system.
Tomasetto multi point pressure reducer automotive valve coil NJT204
suitable for automotive valve system.
Φ 9.3 × 25mm DC12V 48W ,Other special voltage and power could be
customized
It can be supplied with different power consumptions according to
specific requirements.
Specifications:
1. Model number:NJT209
2. Normal voltage:12VDC
3. Normal power: 17W 18W 48W (other voltage and power can be
customized)
4. Color : Red , ( can be customized )
5. Inner Hole : Φ 9.3 × 25mm
6. Protect class : IP66
7. Insulation class : H
8. Connection Type : 16 × 0.8mm
9. Used to VALTEK series injection rail
10. Heavy duty long service life
Drawings:
Competitive Advantage:
High temperature resistant, excellent moistureproof property,widely
used in car dual-fuel LPG/CNG modified
system, pressure reducer,motorcycle device etc.
Coil other parameter:
Insulation temperature class | A | E | B | F | H |
Maximum allowable temperature/degree | 105 | 120 | 130 | 155 | 180 |
Permissible temperature rise(K) | 60 | 75 | 80 | 105 | 125 |
Performance reference temperature/degree | 80 | 95 | 100 | 120 | 145 |
Thermal margin | 5 | 5 | 10 | 10 | 15 |
Maximum ambient temperature/degree | 40 | 40 | 40 | 40 | 40 |
Attention:
1, Before you endorse the parcel , please do open the package , and
check out whether the items are damaged during the shipping process
. If so , please do refuse to sign for the parcel, the courier will
send back the package to our company. Otherwise we are not
responsible for this
2, Any order is welcome; we will give discounts and combined
shipping costs for you if you order more or mix order. If you have
any questions, please feel free to contact us.
