The Pulse solenoid coil A044 suitable for ASCO " 1-1/2 ” SCG353A047 and " 2 ” SCG353A051 , " 2-1/2" SCG353A060 . It can be supplied with different power consumptions according to specific requirements .

Pulse valve is mainly used in environmental dust industries , such as electromagnetic or pneumatic control by the pilot valve can open and close the high-pressure gas source to generate pulse valve diaphragm valve in an instant , but also commonly known as electromagnetic pulse were pulsed valve or gas control valve .

Specifications:

1. Normal voltage : 24VDC 220VAC

2. Normal power : AC18VA DC15W ( other voltage and power can be customized )

3. Color : Black ( can be customized )

4. Inner Hole : Φ 14.2 , High40.3mm

5. Protect class : IP65

6. Connection Type : DIN43650A

7. Insulation class : H

8. Applicability : Pulse valve series

9. Used to ASCO Pulse SCG353A047 353A051 353A060
10. Heavy duty long service life

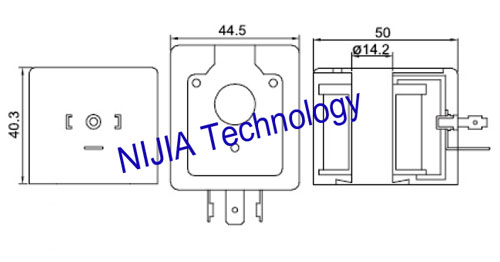

Drawings:

Applications

Electromagnetic pulse valve ( also called diaphragm valve ) is a pulse jet bag filter cleaning system air "switch" Control pulse controller output signal control , bag- by-row ( room ) injection cleaning , so dust resistance remain within the set range , in order to ensure the processing power and dust collection efficiency .

Z type pulse valve for the right angle , the angle between the import and export of 90 °, suitable for mounting the air bag and the link between the injection tube , air flow , providing cleaning gas pulses to meet the requirements .
Y type is submerged pulse valve ( also known as embedded valve ) , it is mounted directly on the air bag has better flow characteristics .
Pressure loss decreased for the lower air pressure in the workplace .
