Norgren Herion 0200 Explosion proof solenoid coil insert diameter
13.4mm ExmbIIT4
Explosion proof solenoid coil explosion protection class is
ExmbIIT4, could be applied to Norgren Herion series solenoid valve
, and pulse valve. All solenoids of this system have the stable
power and good insulation , could be able to adapt to most
environment .
| Ordering Code | EX1360 |
| Voltage Rating | AC220V AC110V DC24V DC12V,Other voltage can be customized |
| Power Rating | AC: 15VA DC: 11W,Other voltage can be customized |
| Ex-proof Class | Ex mbⅠ/ⅡT4 |
| Protection Class | IP67 |
| Connection | Flying leads (3m Cable) |
| Applied to | Norgren Herion series solenoid valve , and pulse valve |
The product is developed to be used in ambients with temperature
range from -50°C to +50°C, and it has
a power consumption of 3.8W for type T4 and 3W for type T5.
The coil fits all standard operators 3/2 or 2/2 way NC or NO ,
threaded or flange types.
All main voltages are available.
Other specific voltage and power could be customized as your
request.
Specifications:
Brand name : NIJIA
Model number : Ex-proof Solenoid valves
Voltage : DC 12V-24V AC24V-380V
Working Medium : Air,Water,Oil
Operating Method : Direct action
Working Temperature : -50~50°C
Connection type : Flying Lead-type
Qualification Certificate : CNEX13.2864
Explosion Protection Class:
| Specific marking of explosion protection. |
II | Group II – Electrical apparatus for places with a potentially explosive atmosphere, other than mines susceptible to fire dump. |
2 | Category 2 – see the board below. |
G | Explosive gas atmospheres. |
D | Explosive atmosphere in the presence of combustible dust. |
Ex | The symbol Ex which indicates that the electrical apparatus
corresponds to one of the protection type (EN 60079-0). |
mb | Type of protection for gas – encapsulation “m”, level “mb”. |
tb | Type of protection for explosive dust atmospheres –protection by
enclosure. |
IIC | Electrical equipment of Group II is subdivided according to the nature of the explosive gas atmospheres – IIC, a typical gas is
hydrogen. |
IIIC | Electrical equipment of Group III is subdivided according to the
nature of the explosive dust atmospheres – IIIC, conductive dust. |
T5 or T4 | Temperature Class. T5 or T4. |
Gb | Equipment protection level [EPL] for explosive gas atmospheres. |
Db | Equipment protection level [EPL] for explosive dust atmospheres. |
IP66 | The degrees of protection provided by an enclosure against ingress of solid foreign objects, dust (first number) and water
(second number). |

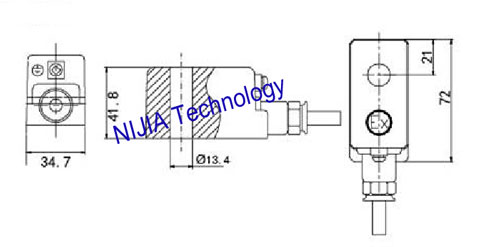

Drawings:
Competitive Advantage:
| Our product features: | Our Services Guarantee: |
| 1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
| 2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging, | 3) Registration support. |
| 4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
| 5) None delay shipment | 5) Loading inspection, and send loading photos before shipment.
|
