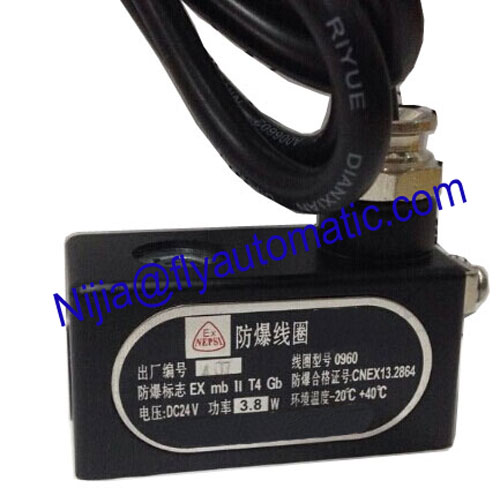

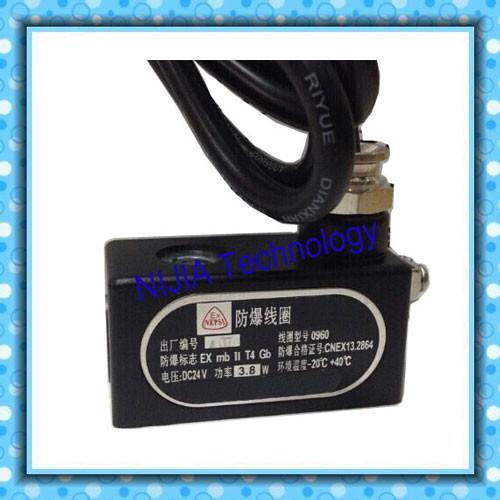

SMC VF3130 Shako BM520 Airtac 4V210 Anti-proof solenoid valve coils
high pressure ExmbIIT4
Anti-proof solenoid valve coils are designed for SMC VF3130 Shako
BM520 Airtac 4V210 solenoid valves. All solenoids of this system
have the stable power and good insulation , could be able to adapt
to the bad environment .
The Insulation Class can reach ExmbII4.
| Ordering Code | 0980 ,0981 |
| Voltage Rating | AC220V AC110V DC24V DC12V,Other voltage can be customized |
| Power Rating | AC: 13VA DC: 11W,Other voltage can be customized |
| Ex-proof Class | Ex mbⅠ/ⅡT4 |
| Protection Class | IP67 |
| Connection | Flying leads (3m Cable) |
| Applied to | SMC VF3130, Shako BM520, Airtac 4V210,etc |
The product is developed to be used in ambients with temperature
range from -50°C to +50°C, and it has
a power consumption of 3.8W for type T4 and 3W for type T5.
The coil fits all standard operators 3/2 or 2/2 way NC or NO ,
threaded or flange types.
All main voltages are available.
Other specific voltage and power could be customized as your
request.
Specifications:
Brand name : NIJIA
Model number : Ex-proof Solenoid valves
Voltage : DC 12V-24V AC24V-380V
Working Medium : Air,Water,Oil
Operating Method : Direct action
Working Temperature : -50~50°C
Connection type : Fly Lead-type
Qualification Certificate : CNEX13.2864
Explosion Protection Class:
| Specific marking of explosion protection. |
II | Group II – Electrical apparatus for places with a potentially explosive atmosphere, other than mines susceptible to fire dump. |
2 | Category 2 – see the board below. |
G | Explosive gas atmospheres. |
D | Explosive atmosphere in the presence of combustible dust. |
Ex | The symbol Ex which indicates that the electrical apparatus
corresponds to one of the protection type (EN 60079-0). |
mb | Type of protection for gas – encapsulation “m”, level “mb”. |
tb | Type of protection for explosive dust atmospheres –protection by
enclosure. |
IIC | Electrical equipment of Group II is subdivided according to the nature of the explosive gas atmospheres – IIC, a typical gas is
hydrogen. |
IIIC | Electrical equipment of Group III is subdivided according to the
nature of the explosive dust atmospheres – IIIC, conductive dust. |
T5 or T4 | Temperature Class. T5 or T4. |
Gb | Equipment protection level [EPL] for explosive gas atmospheres. |
Db | Equipment protection level [EPL] for explosive dust atmospheres. |
IP66 | The degrees of protection provided by an enclosure against ingress of solid foreign objects, dust (first number) and water
(second number). |

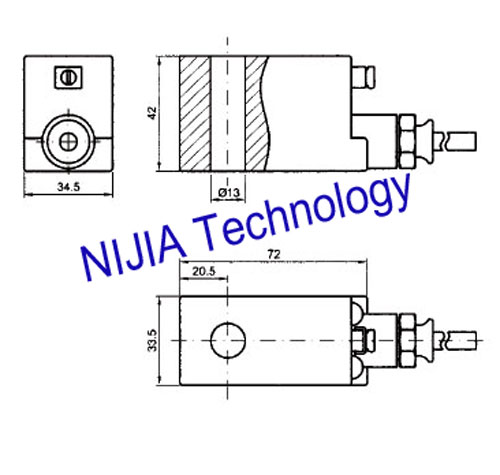

Drawings:
Competitive Advantage:
1. Professional factory and excellent team.
2. Best service from the whole company.
3. High and stable quality.
4. Adequate inventory and quick delivery time.
5. Good package in order to void the problems in transportation.
