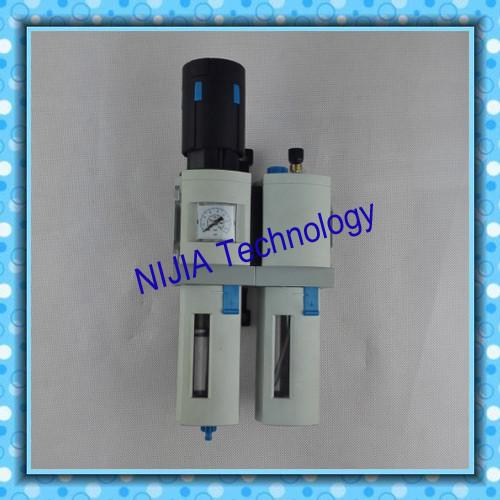

Festo MS MSB series Air source treatment unit combinations
MSB4/MSB6-FRC 1/8" 1/4" 3/8" 1/2"
Description
1. Filter, regulator and lubricator function in a single unit.
2. High flow rate and highly efficient removal of contaminants.
3. Good regulating characteristics with minimal pressure
hysteresis.
4. Setting values are secured by locking the rotary knob.
5. Lockable rotary knob
6. Two pressure regulation ranges: 0.3 … 7 bar and 0.5 … 12 bar.
7. With manual or integrated, fully automatic condensate drain.
8. Choice of filter cartridges: 5 μm or 40 μm.
9. New filter cartridges 16, Festo special oil 16
General technical data
| Size | MSB4 | MSB6 |
| Pneumatic connection 1, 2 | G 1/8 | - |
| G 1/4 | G 1/4 |
| - | G 3/8 |
| - | G 1/2 |
| Design | Filter regulator with pressure gauge |
| Proportional standard mist lubricator |
| Regulating function | Output pressure constant, with primary pressure compensation, with
return flow function, with secondary venting |
| Type of mounting | Via accessories |
| Assembly position | Vertical ±5° |
| Grade of filtration [μm] | 5 |
| 40 |
| Air purity class at the output | Compressed air in accordance with ISO 85731:2010 [6:4:–] (grade of
filtration 5 μm) |
| Compressed air in accordance with ISO 85731:2010 [7:4:–] (grade of
filtration 40 μm) |
| Bowl guard | Plastic bowl guard | Plastic bowl guard |
| - | Integrated as metal bowl |
| Condensate drains | Manual rotary |
| Fully automatic |
| Actuator lock | Rotary knob with detent, lockable via accessories |
| Pressure regulation range [bar] | 0.3 … 7 |
| 0.5 … 12 |
| Pressure indicator | With pressure gauge |
Structure
| Type | B1 | B2 | B3 | B4 | B5 | B6 | D1 | L1 | L2 | L3 | L4 | L5 | 16 | L7 | L8 |
| Condensate drain |
manual
rotary | fully auto-matic |
|
| MSB4-1/8 | 80.4 | 40.2 | 21 | 57 | 44 | 29.7 | G 1/8 | 201 | 87 | 60 | 80 | 25 | 17.7 | 20.4 | 167 | 53 |
| MSB4-1/4 | G1/4 |
| |
| MSB6-1/4 | 124 | 62 | 31 | 77 | 54 | 38.8 | G 1/4 | 284.8 | 134.5 | 95.5 | 130 | 68 | 15.8 | 18.5 | 215.3 | 65.6 |
| MSB6-3/8 | G 3/8 |
| MSB6-1/2 | G 1/2 |
Material
| ① Body | Die-cast aluminium |
| ② Regulating knob | PA/POM |
| ③ Plastic bowl guard | PC |
| ④ Metal bowl | Wrought aluminium alloy |
| – Seals | NBR |
