14750152H 3 Position Pneumatic Distributor Valve Pressure Air
Contorl Valve
Tipper Air Control Valves are designed to enable easy controls of
hydraulic functions as well as controlling air from the cabin of
vehicles.
These are manufactured by adhering to preset industry norms and are
compatible with makes of major vehicle manufacturers.
Quick Detail:
1) Power: Hydraulic
2) Material: Aluminum
3) Automatically locked in stop and fall position
4) Working medium:Air
5) Operating pressure(Bar): up to 12
6) Working temperature: -40ºC-/+80ºC
7) Thread screw (mm): G1/4-6mm or NPT1/4 - 1/4"Hose
8) Weight: 0.9kg
Description:
| Part No. | Description |
| 147 50 430H | Air controls |
| 147 50 450H | Additional 3/2 section with pressure switch |
| 148 50 455H | Additional 3/2 section |
| 149 50 460H | Additional 4/3 section |
| 150 50 511H | Mounting kit 1 additional section |
| 151 50 512H | Mounting kit 2 additional section |

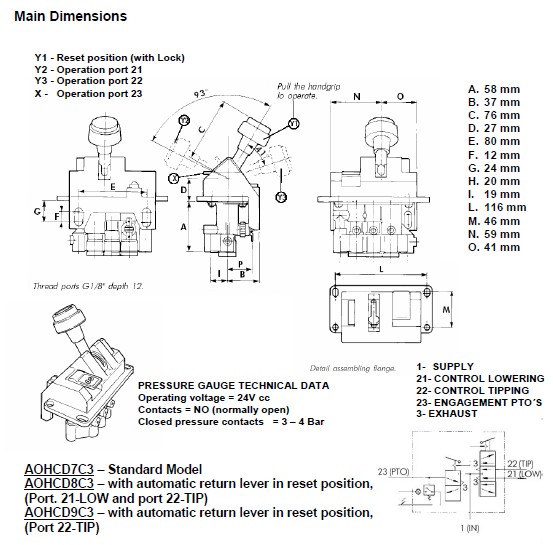

Drawings
Mounting of the air control:
1. Connect the air control according the pneumatic scheme.
2. For troble free life of the pneumatic system there should be
worked with "Dry" air.
3. Ensure that air tubes are:
-Not too close to sharp objects
-Clear from moving parts
-Clear from exhaust and compressor lines
-Not get kinked
-Not too long
4. Main section has two M6 holes(10 deep) at 58 mm distance to fit
the air control in the cabin.
5. 14750450H can only mounted as the last in a row
Note:
The air supply must always be taken from an accessory air tank or
auxiliary valveand the pneumatic system must be protected with a
charging valve.
